Motorized Louvered Pergola Installation in Collin and Denton Counties
A fixed pergola gives you shade or sun, but a motorized louvered pergola gives you both on demand. Double T Screened Patios installs custom louvered pergolas across Collin and Denton Counties that open, close, and seal against rain from your phone, a remote, or a wall switch.
Why a Motorized Louvered Pergola Outperforms a Fixed Pergola
Most homeowners in Collin and Denton Counties with a traditional fixed pergola run into the same limitation. It gives you one level of shade, no rain protection, and no way to adjust when the sun moves or the weather turns.
As an authorized Azenco Outdoor dealer, Double T Screened Patios installs louvered and retractable pergola systems that solve this permanently. Adjustable aluminum louvers or a retractable fabric roof let you decide how much sun, shade, and airflow your patio gets, and when to close it against rain.
Benefits of Motorized Louvered Pergola Installation
Full Sun to Full Shade on Demand
Rotate the louvers or retract the roof to set exactly the light you want. Morning sun, afternoon shade, or anything in between, adjusted in seconds.
Rain Protection With Built-In Drainage
Closed louvers shed rain into gutters built into the frame. Your patio stays dry without moving furniture inside.
Adjustable Airflow
Partially open louvers let breeze through while controlling the angle of sunlight. You set the ventilation your space needs on any given day.
Low Maintenance Aluminum
Extruded aluminum framing with AAMA 2604 powder coating resists corrosion, fading, and peeling. No painting, sealing, or board replacement.
Smart Control From Anywhere
Operate your pergola by app, remote, or wall switch, with smart home integration available. Smart sensors can close the roof automatically when rain starts.
Rated for Severe Weather
Our motorized and fixed slat systems are rated for wind loads up to 190 mph and snow loads up to 100 lbs per square foot. That is structural capacity well beyond everyday North Texas storms.
Louvered Pergola Options for Collin and Denton County Homes
Every pergola we install is part of the Azenco Outdoor collection and custom-configured to your patio dimensions, structure, and control preferences. Choose from four systems, each built for a different way of using your outdoor space.

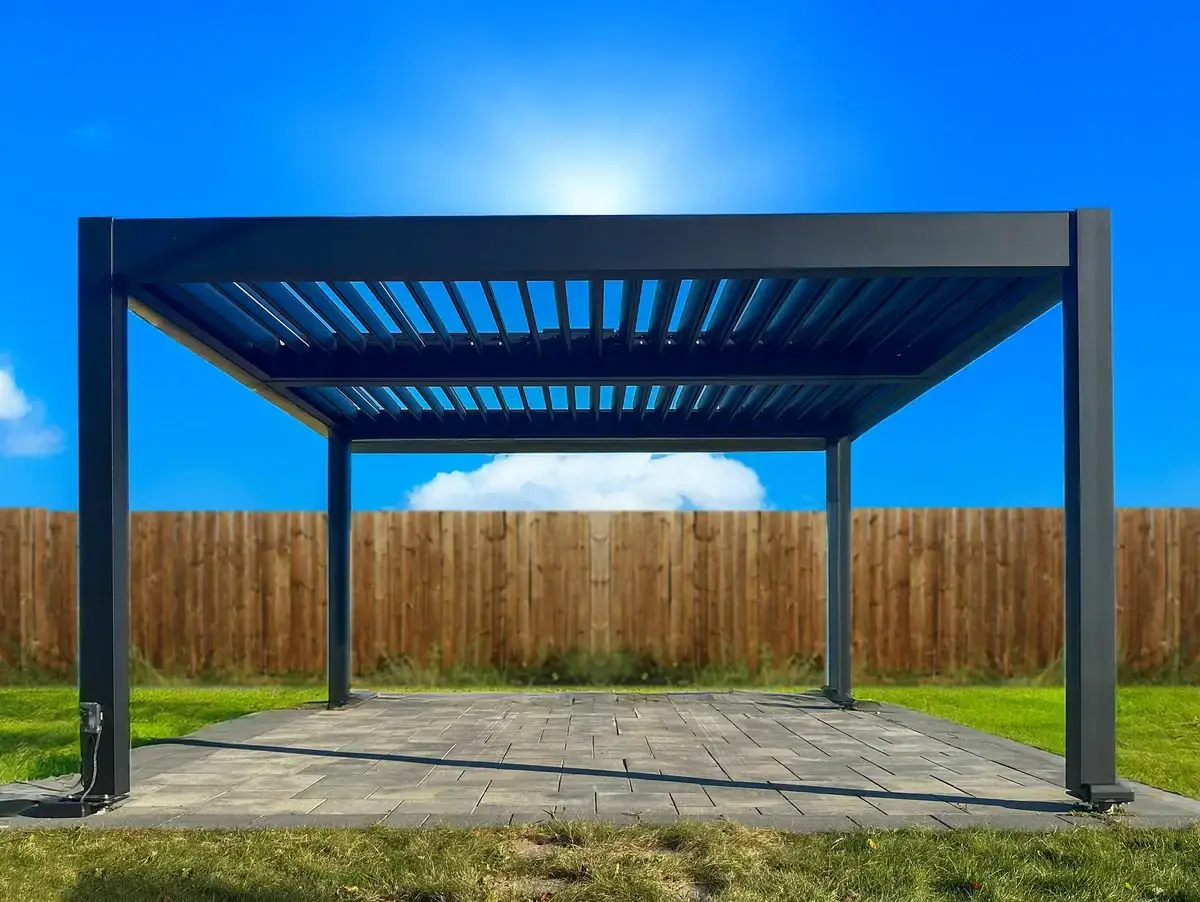

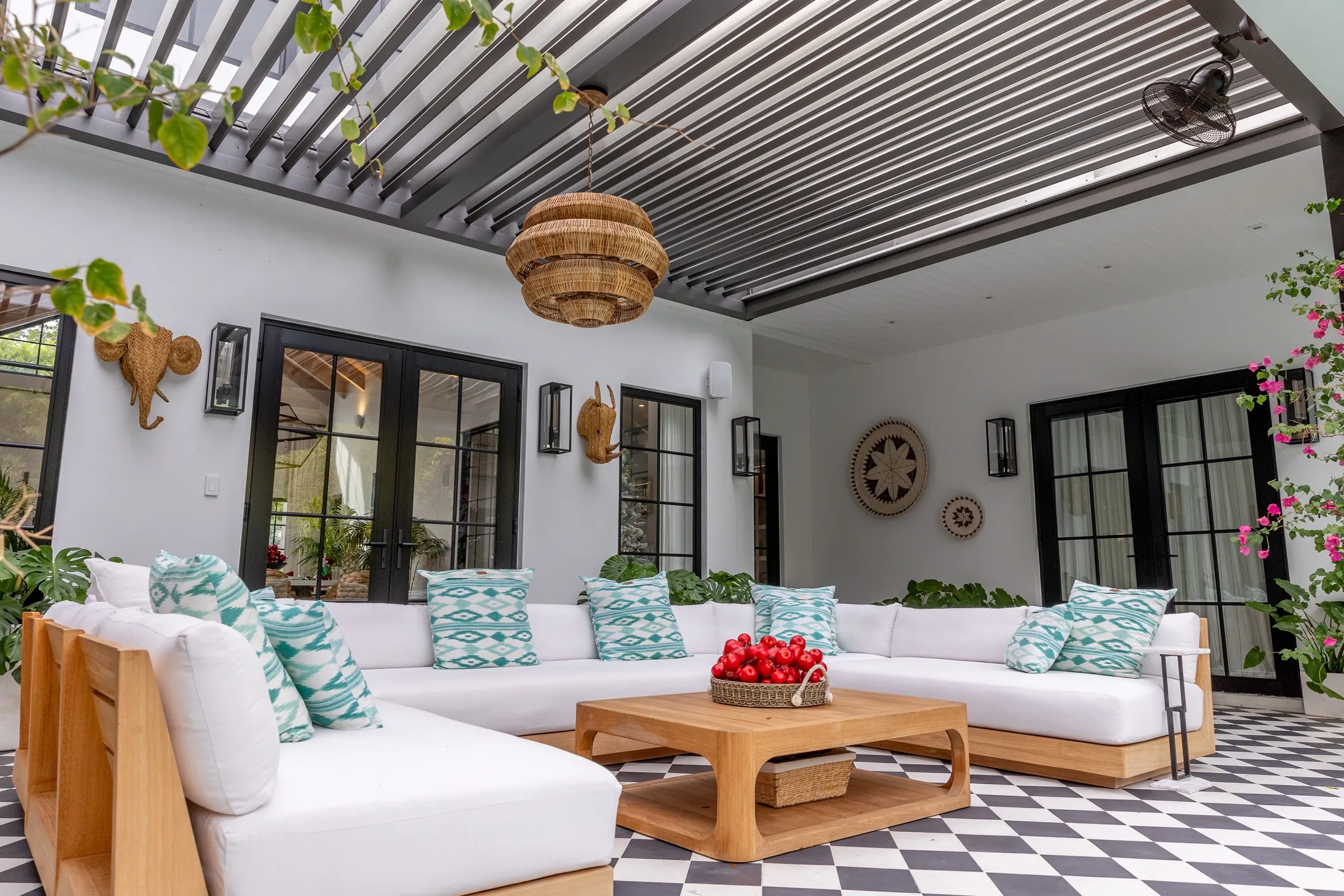

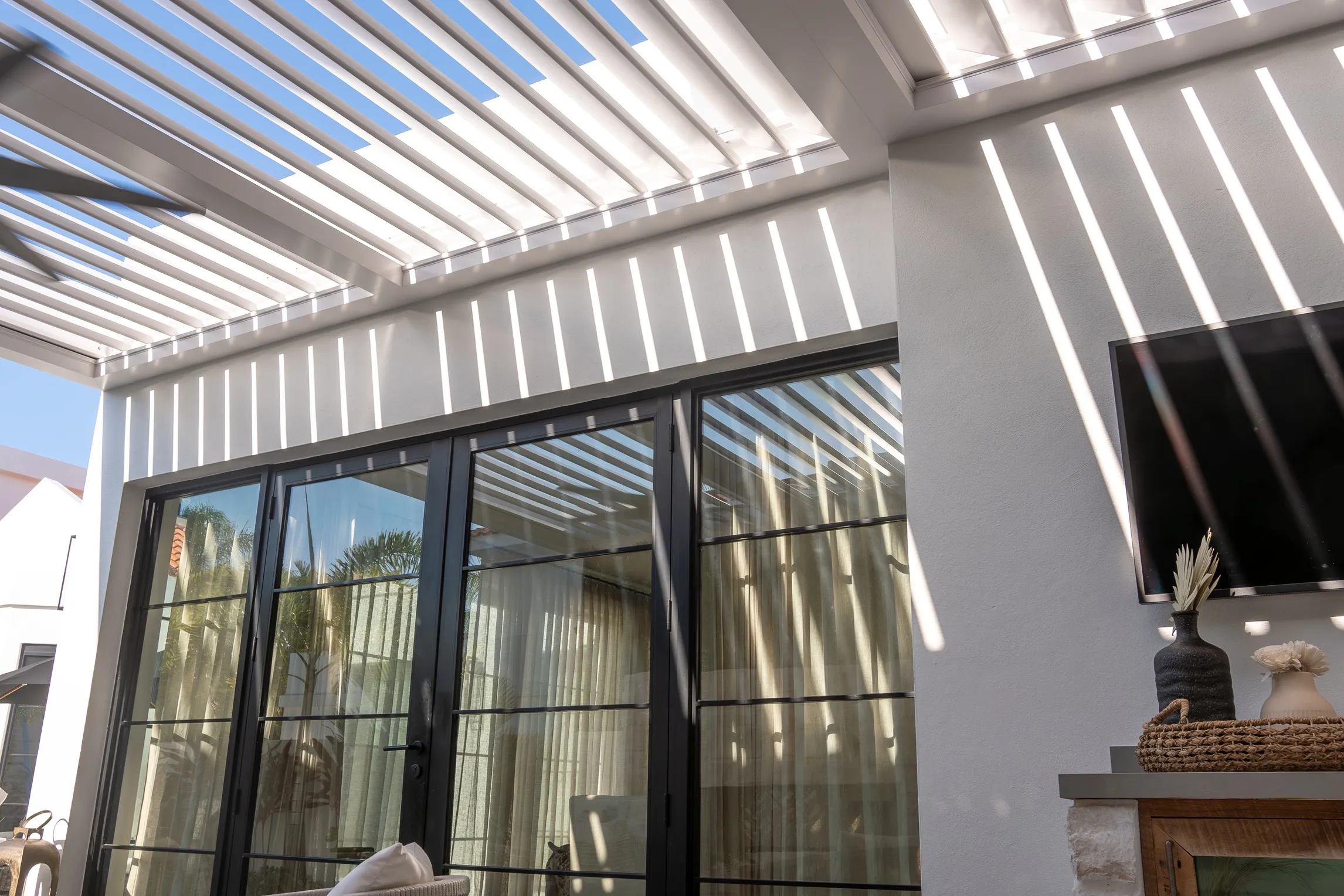

R-BLADE™ Motorized Louvered Pergola
Best for: Homeowners who want one-touch control over sun, shade, airflow, and rain protection.
R-BLADE™ uses motorized aluminum louvers that quietly rotate up to 90 degrees to set the exact light and airflow you want. Dual-wall louvers close seamlessly for rain and wind protection, and smart sensors can adjust the roof automatically as the weather changes.
Key details:
- Roof: Motorized dual-wall aluminum louvers, rotation up to 90 degrees
- Frame: Extruded aluminum with built-in gutter system
- Controls: App, remote, wall control, smart sensors, and smart home systems
- Wind Load: Up to 190 mph
- Snow Load: Up to 100 lbs per sq. ft.
- Custom Dimensions: Up to 22’10” x 16′ single zone
- Configurations: Wall-mounted, free-standing, multi-zone, and special cuts and angles
- Certification: Miami-Dade County NOA No. 25-0205.04
- Colors: White, Black, Dark Gray, Wood Grain, Bronze, and Custom
- Accessories: Architectural features, integrated lighting, and privacy walls
- Add-Ons: Motorized screens, fans, heaters, misting and cooling systems, and speakers

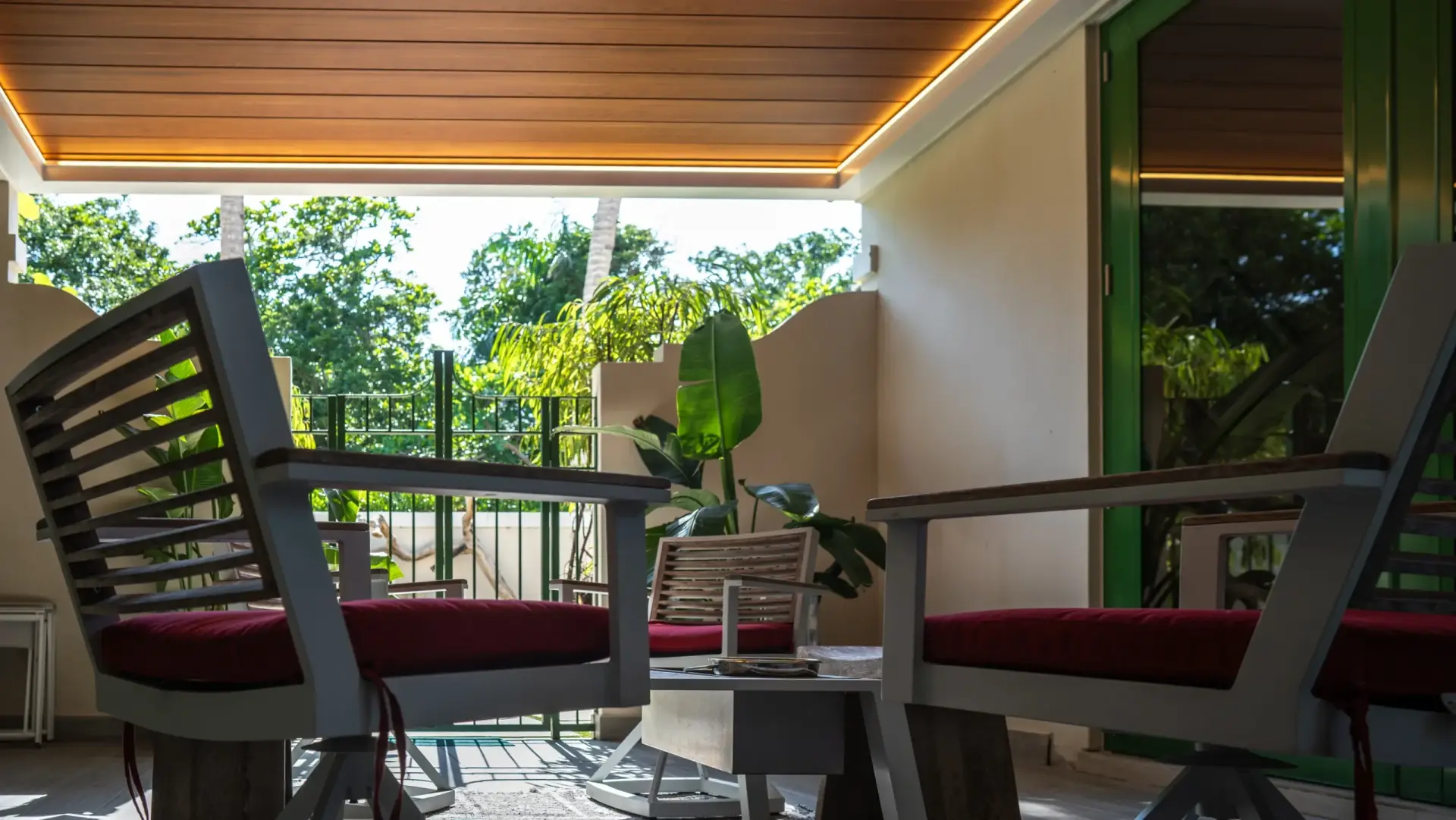

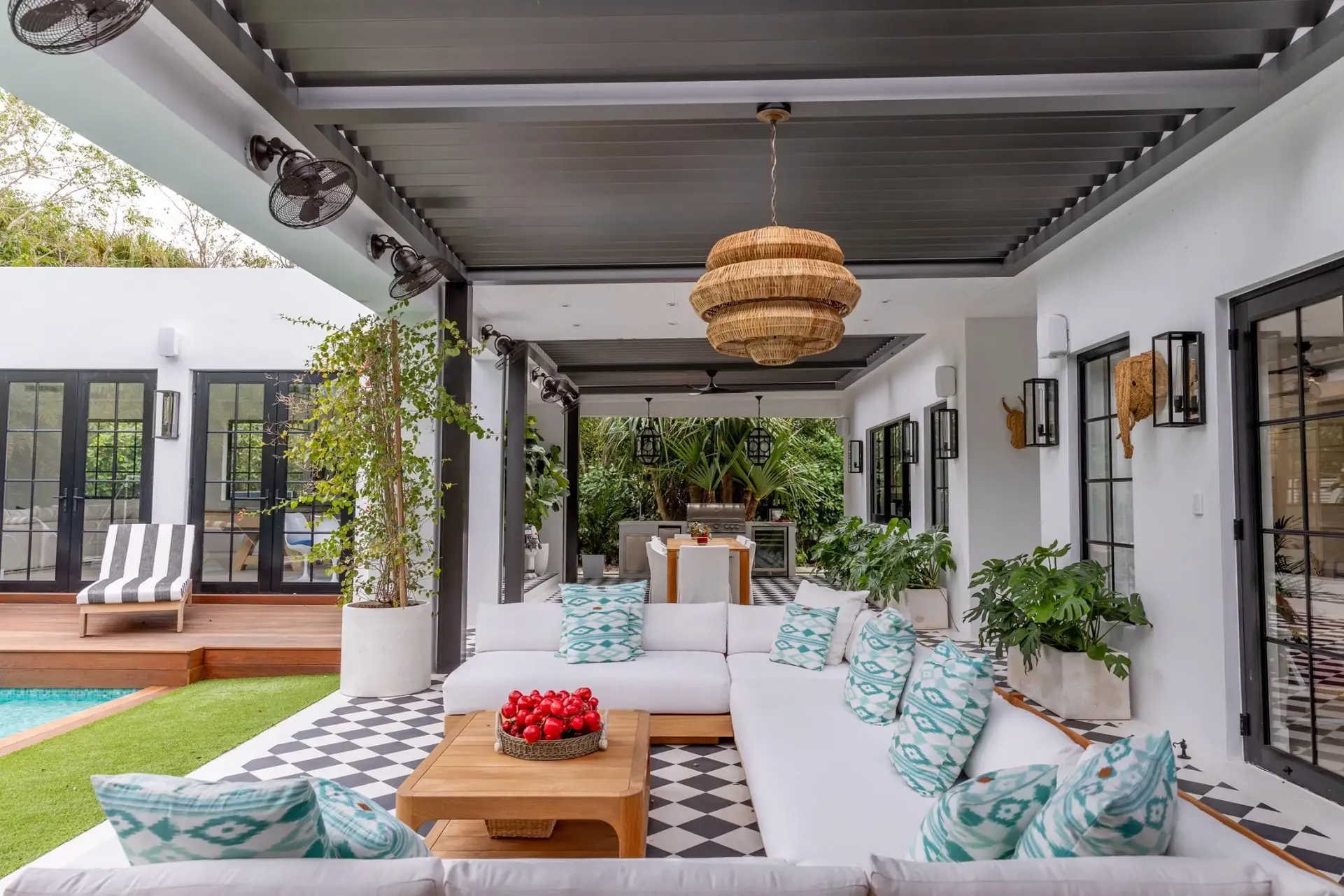

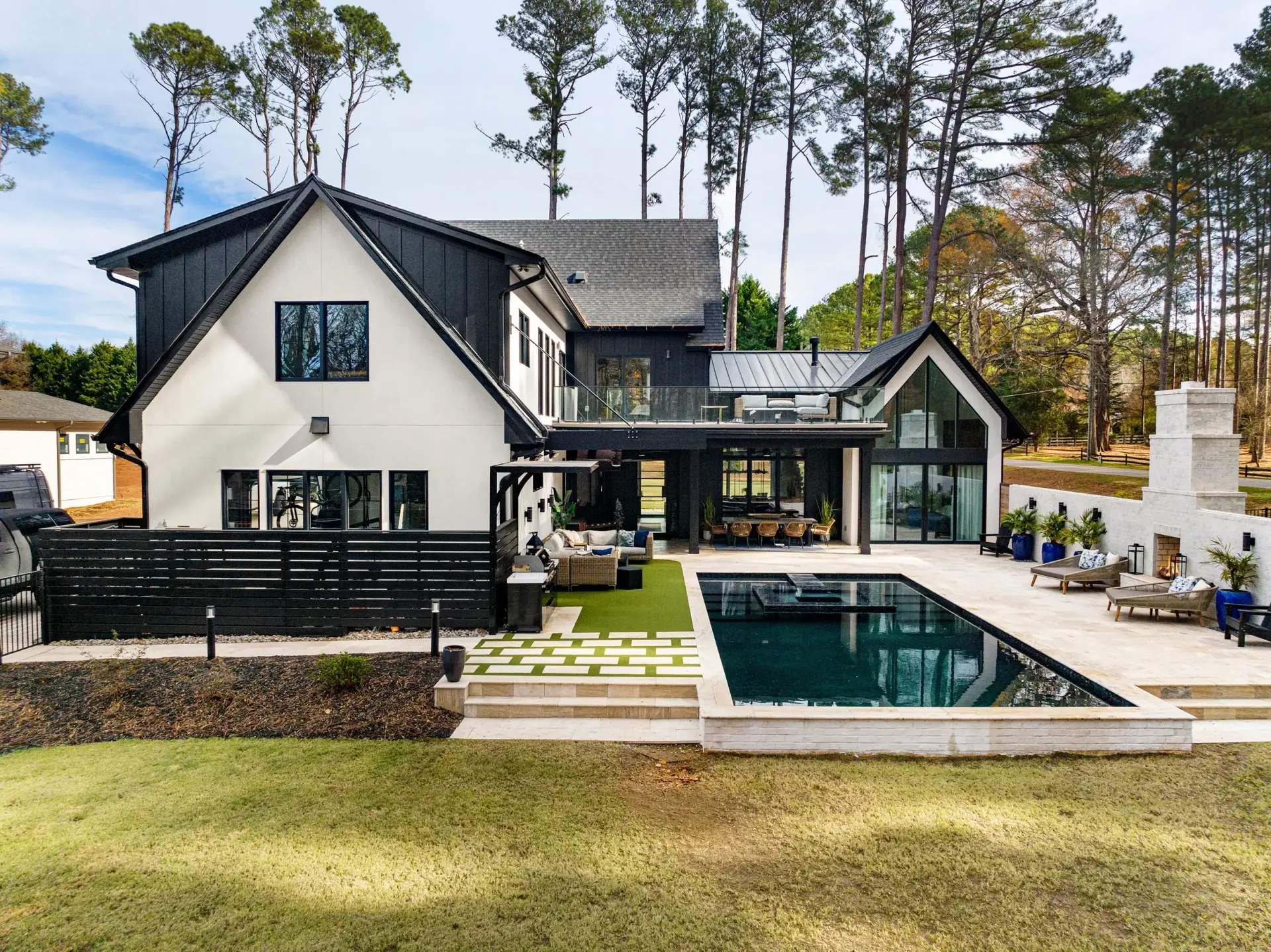

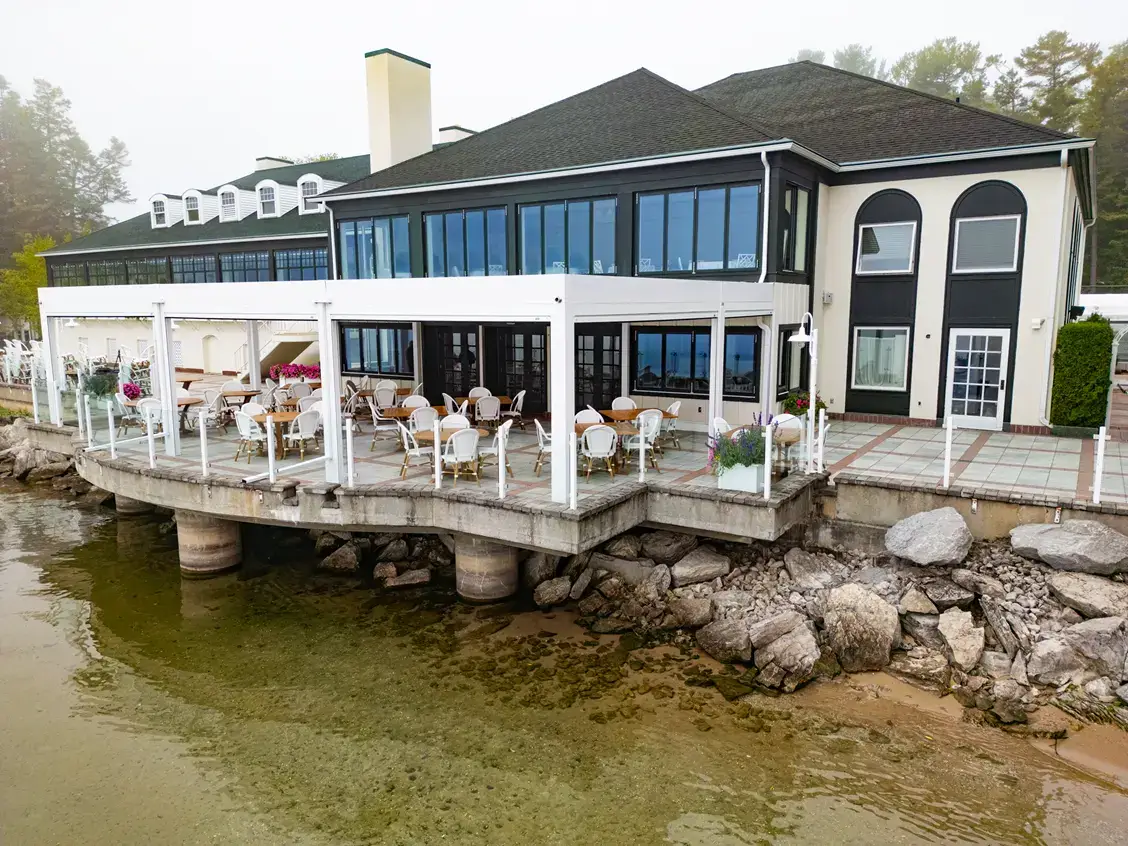

R-WEAVE™ Retractable Fabric Pergola
Best for: Homeowners who want full open sky when retracted and soft, covered shade when extended.
R-WEAVE™ pairs a clean aluminum frame with a motorized retractable fabric roof. Retract it to enjoy the open sky, or extend it for shade and rain protection with smooth, quiet movement.
Key details:
- Roof: Motorized retractable fabric roof
- Upper Fabric: Waterproof PVC + PC construction with high tension, UV protection, and fire-rated performance
- Lower Fabric (Optional): Decorative wavy fabric for a soft, finished look from below
- Frame: Extruded aluminum with built-in gutter system
- Controls: Remote, app, smart sensor, and smart home systems
- Custom Dimensions: Up to 22’10” x 16′ single zone
- Configurations: Wall-mounted, free-standing, and multi-zone
- Colors: White, Black, Dark Gray, Wood Grain, Bronze, and Custom
- Accessories: Architectural features, integrated lighting, and privacy walls

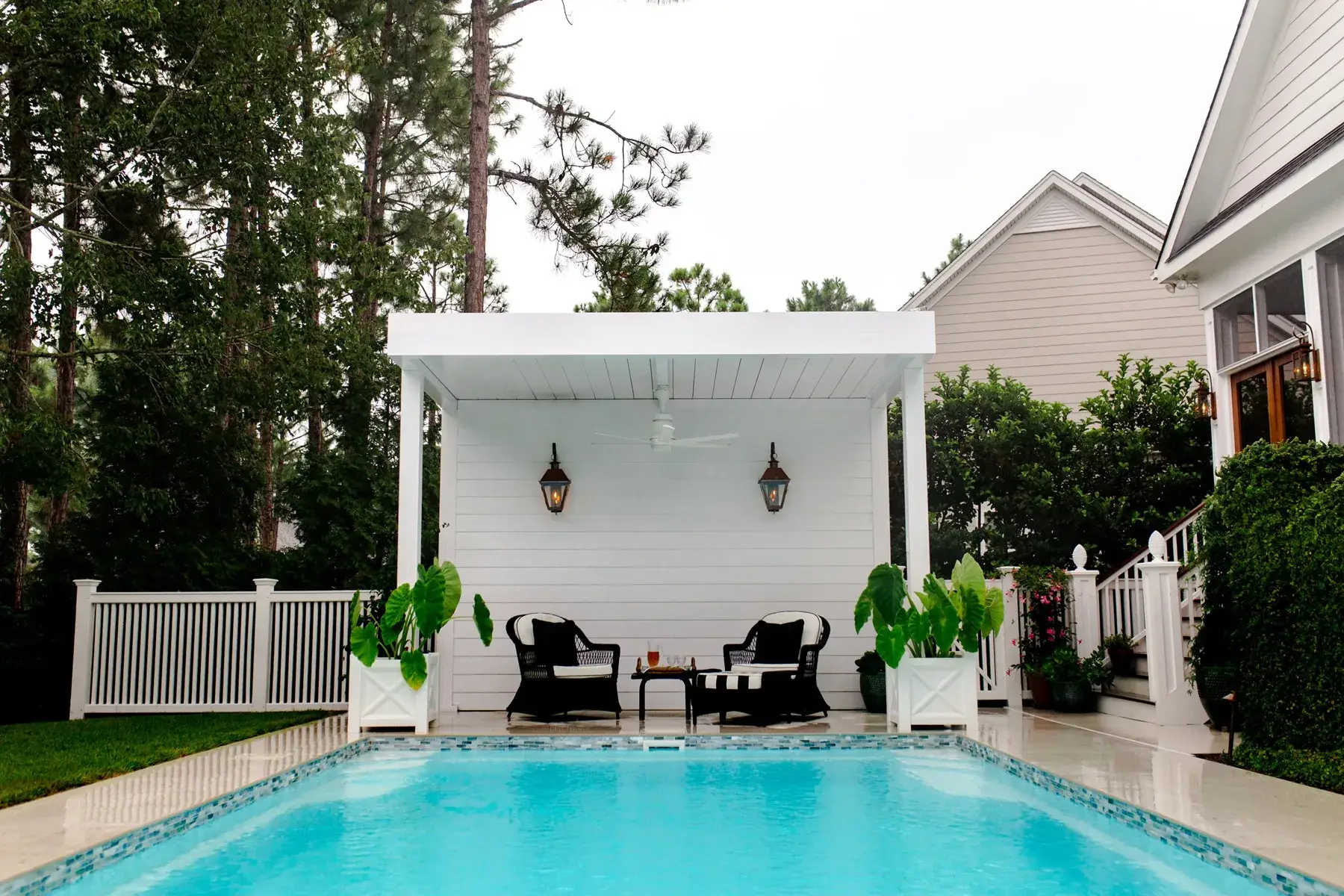

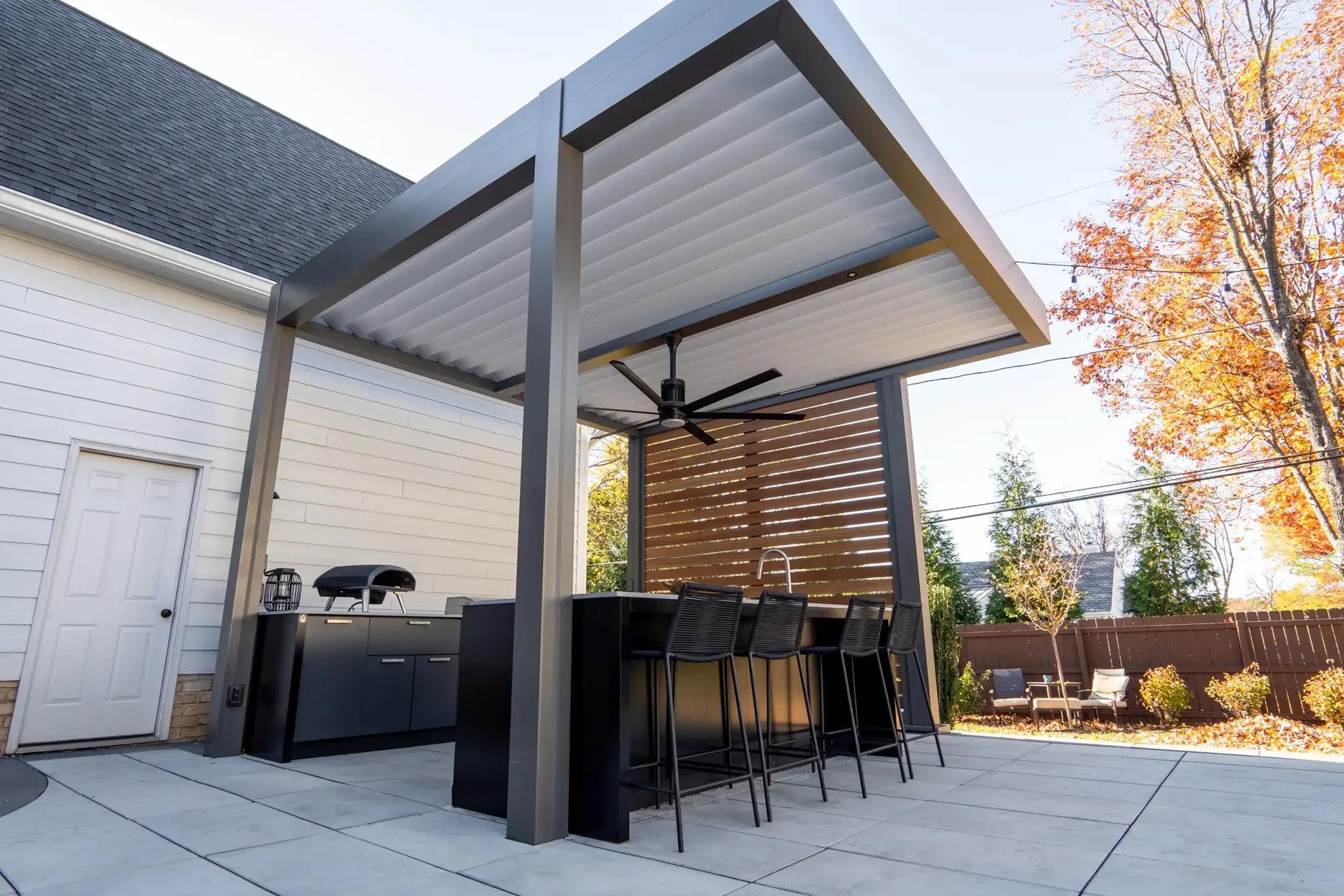

Best for: Homeowners who want architectural shade and airflow with no moving parts.
Best for: Properties where wall attachment is not possible or where a freestanding structure is preferred for design or structural reasons.

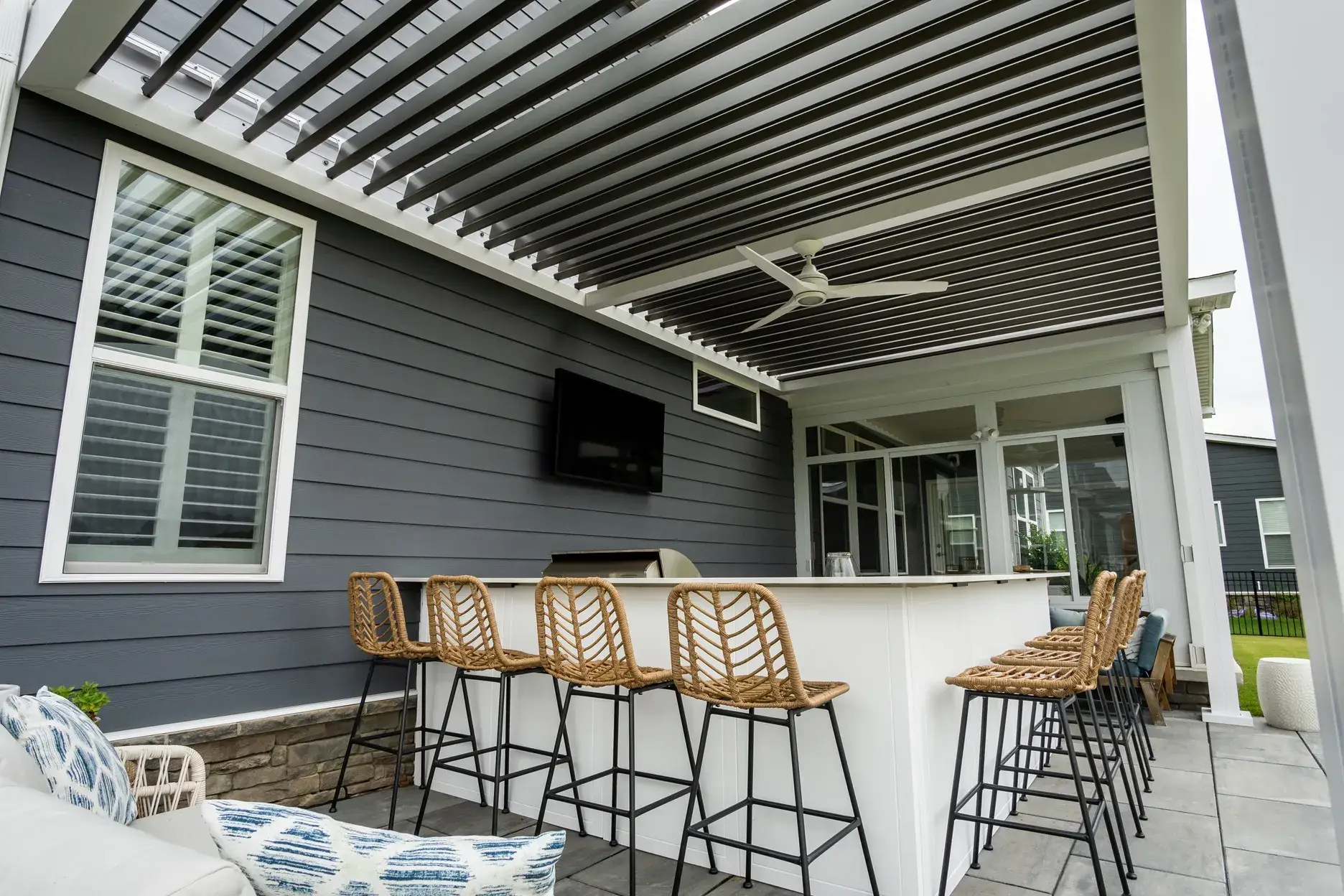

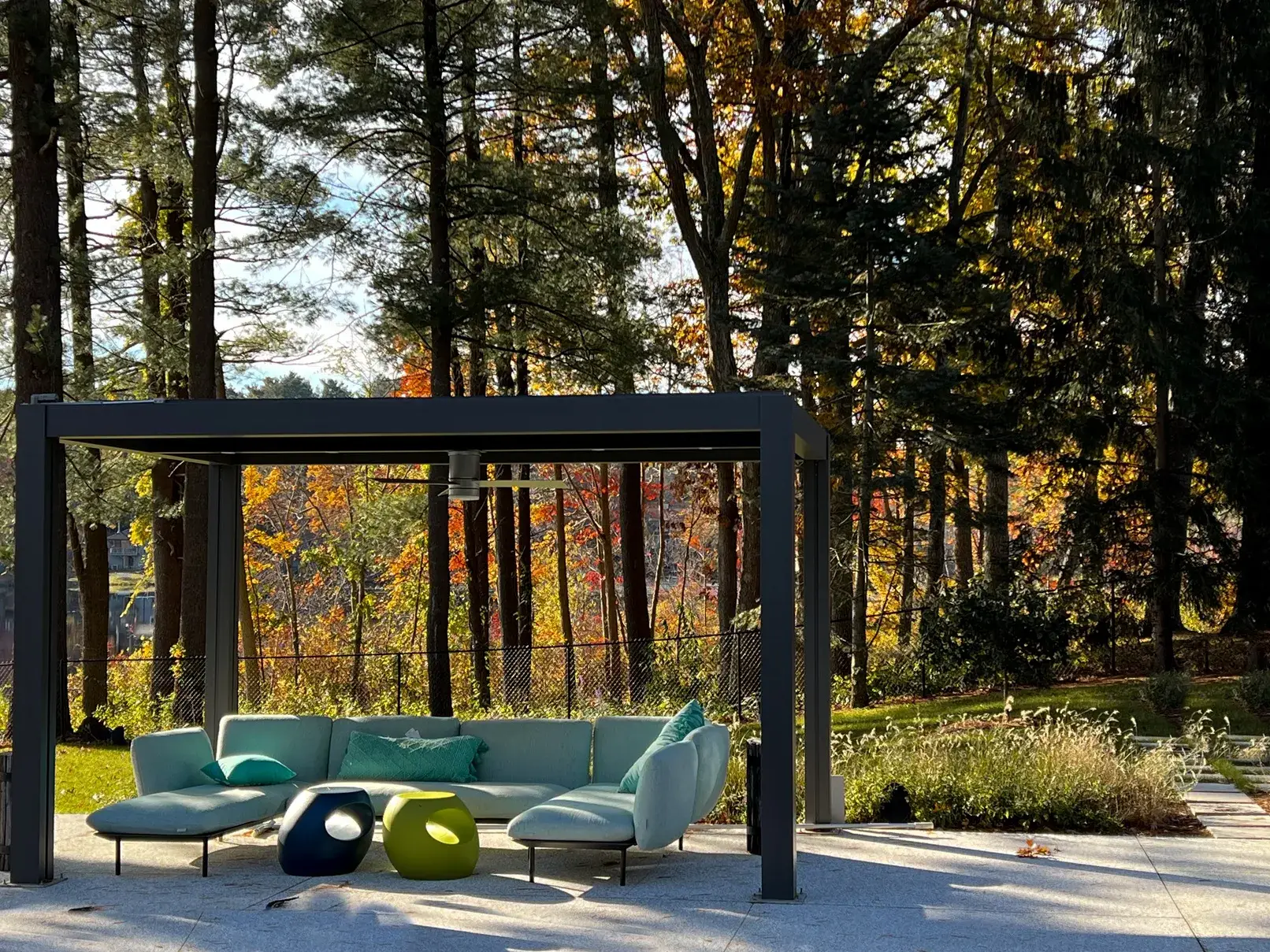

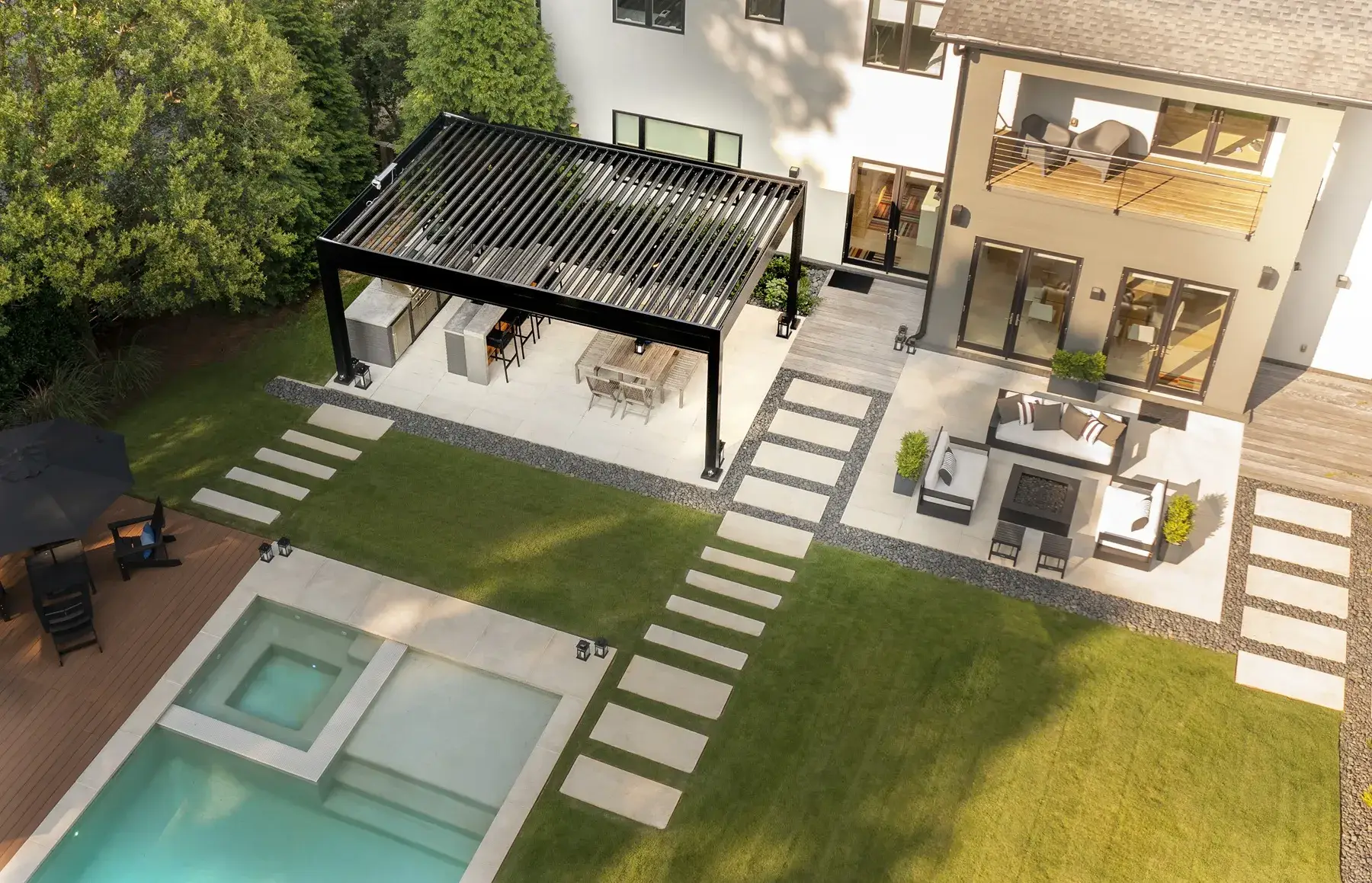

R-BREEZE™ uses a patented fixed slatted roof that filters sunlight and lets breeze flow through. It delivers clean architectural lines, maintenance-free durability, and optional smart lighting for evening use.
Key details:
- Roof: Fixed aluminum slats in two editions
- 90° Edition: Vertical slats for bold lines and greater privacy
- 55° Edition: Angled slats for soft light and airflow while maintaining shade
- Wind Load: Up to 190 mph
- Snow Load: Up to 100 lbs per sq. ft.
- Custom Dimensions: Up to 22’10” x 22’10” single zone
- Configurations: Wall-mounted, free-standing, multi-zone, and special cuts and angles
- Lighting Controls: App, remote, wall control, light sensor, and smart home systems
- Colors: White, Black, Dark Gray, Wood Grain, Bronze, and Custom
- Add-Ons: Motorized screens, fans, heaters, misting and cooling systems, and speakers
K-BANA™ Manual Louvered Pergola
Best for: Homeowners who want adjustable louvers without running electrical to the pergola.
K-BANA™ uses manually operated louvers to control sun, shade, and airflow with no electricity required. Its modular design combines into single-zone, multi-zone, or combined layouts for lounging, dining, or poolside use.
Key details:
- Roof: Manually operated aluminum louvers
- Frame: Extruded aluminum with integrated gutter system
- Power: No electricity required
- Wind Load: Up to 105 mph
- Snow Load: Up to 25 lbs per sq. ft.
- Dimensions: 10’W x 10’L x 8’H to 12’W x 12’L x 8’H
- Editions: Anchored Edition (attaches to existing surfaces) or Platform Edition (includes a built-in floor)
- Configurations: Single-zone, multi-zone, and combined
- Colors: White and Black
- Options: Privacy wall
How to Choose the Right Pergola for Your Patio
Want total control and rain protection?
Choose the R-BLADE™ motorized louvered pergola.
Want open sky one moment and full cover the next?
Choose the R-WEAVE™ retractable fabric pergola.
Want architectural shade with zero moving parts?
Choose the R-BREEZE™ slatted roof pergola.
Want adjustable louvers without electrical work?
Choose the K-BANA™ manual louvered pergola.
Motorized vs. Retractable vs. Fixed vs. Manual Pergola Comparison
| Feature | R-BLADE™ Motorized | R-WEAVE™ Retractable | R-BREEZE™ Fixed Slat | K-BANA™ Manual |
|---|---|---|---|---|
| Roof Type | Motorized louvers | Retractable fabric | Fixed slats | Manual louvers |
| Adjustable Shade | ✅ Yes | ✅ Yes | Fixed | ✅ Yes |
| Sun Access | ✅ Louvers open | ✅ Fully retracts | Filtered only | ✅ Louvers open |
| Rain Protection | ✅ When closed | ✅ When extended | Not a rain roof | ✅ When closed |
| Smart Controls | ✅ App, remote, sensors | ✅ App, remote, sensor | ✅ Lighting only | Manual |
| Electricity Needed | Yes | Yes | For lighting only | No |
| Max Single Zone | 22'10" x 16' | 22'10" x 16' | 22'10" x 22'10" | 12' x 12' |
| Colors | 6 options | 6 options | 6 options | White, Black |
Schedule Your Free
Pergola Installation Consultation
Our team will measure your space, walk you through every pergola configuration, and show you color and lighting options in person.
Louvered Pergola Engineering Built for North Texas Weather
01
Precision-Extruded Aluminum
Every Azenco pergola frame is built from precision-extruded aluminum for strength and long-term durability. No wood components means no rot, no warping, and no deterioration under North Texas heat and UV.
02
AAMA 2604 Powder Coating
All finishes use AAMA 2604 powder coating that protects against corrosion, fading, and peeling. It holds up in high-sun environments like Collin and Denton Counties without repainting.
03
Integrated Gutter and Drainage System
Our motorized, retractable, and manual pergolas include gutters built into the frame. Rainwater is channeled off the roof and away from your patio instead of spilling over the edges.
04
Dual-Wall Gapless Louvers
R-BLADE™ louvers use a dual-wall design that closes seamlessly. The result is a tight seal against rain and wind with a sleek, modern profile.
05
Miami-Dade NOA Approval
R-BLADE™ carries Miami-Dade County NOA No. 25-0205.04, one of the most demanding product approvals for high-wind performance. It is rated for winds up to 190 mph.
06
Concealed Hardware and Clean Lines
Hidden fasteners and integrated lighting channels keep the structure uncluttered. Your pergola looks architectural, not assembled.
Our Louvered Pergola Installation Process in Collin and Denton Counties
Free Consultation and Site Evaluation
Our team visits your property, assesses your patio layout and structure, and walks you through every pergola option. We cover wall-mounted versus free-standing, colors, lighting, and add-ons like screens and heaters.
Pergola Design and Engineering
Your pergola is specified to your exact dimensions, configuration, and site conditions. Electrical routing is planned for motorized systems and coordinated with any existing outdoor wiring.
Permit Research and Filing
We research permit requirements for your city in Collin or Denton County and handle the filing. Pergolas typically require permits across most local jurisdictions, especially motorized systems with electrical connections.
Professional Pergola Installation and Walkthrough
Our crew installs footings, framing, the roof system, drainage, lighting, and controls. Motorized systems are tested through their full range, and you get a complete walkthrough on operation and care.
Collin and Denton Counties' Trusted Louvered Pergola Contractor
Authorized Azenco Outdoor Dealer
Double T Screened Patios is an authorized Azenco dealer serving Collin and Denton Counties. You get genuine Azenco pergola systems installed by a team that knows them inside and out.
Four Pergola Systems, One Installer
Motorized, retractable fabric, fixed slat, or manual. You choose based on how you use your space and your budget, not a single product push.
Full Engineering Included
Every pergola is engineered for your site-specific span, load, and local wind conditions. You get a code-compliant installation, not a best-guess structure.
Permit Research and Filing Included
We handle permit research and filing for your Collin or Denton County municipality on every project.
Complete Outdoor Living Integration
A pergola works best as part of a complete outdoor space. Homeowners often add motorized screens, deck installation, and privacy walls alongside their pergola.
4.8 ★
Across 116 Reviews
Customers across Frisco, McKinney, Prosper, Plano, and throughout Collin and Denton Counties consistently rate us on craftsmanship, communication, and finished quality.
Louvered Pergola Installation FAQs
How is a louvered pergola different from a standard pergola?
A standard pergola has fixed slats or open beams that provide one level of shade and no weather protection. A louvered pergola has adjustable aluminum louvers that rotate to control sun, shade, airflow, and rain.
What is the difference between a motorized louvered pergola and a retractable pergola?
A motorized louvered pergola like the R-BLADE™ uses aluminum louvers that rotate to control light and airflow and close tightly for rain protection. A retractable pergola like the R-WEAVE™ uses a motorized fabric roof that fully retracts for open sky or extends for shade and rain protection.
Which pergola offers the best rain protection?
The R-BLADE™ motorized louvered pergola offers the most complete weather protection, with dual-wall louvers that close seamlessly and a built-in gutter system. R-WEAVE™ and K-BANA™ also provide rain protection when closed or extended. R-BREEZE™ is a fixed slatted roof designed for shade, not as a rain roof.
How does the pergola drainage system work?
When the roof is closed, rainwater flows into gutters built into the aluminum frame. It is then directed away from the patio surface instead of spilling over the edges.
Can a louvered pergola be attached to my house?
Yes. Our motorized, retractable, and fixed slat pergolas are available in wall-mounted configurations, as well as free-standing and multi-zone layouts. Our team evaluates your home’s structure during the site visit and plans the attachment for your conditions.
Do I need electricity for a louvered pergola?
Motorized louvered and retractable pergolas require an electrical connection, which we plan during design. The K-BANA™ manual louvered pergola needs no electricity. R-BREEZE™ only needs power if you add integrated lighting.
Do pergolas require a building permit in Collin and Denton Counties?
Yes, in most cases. Pergolas are permanent structures, and motorized systems with electrical connections may need additional permit coverage. Double T Screened Patios handles permit research and filing on every project.
What pairs well with a louvered pergola?
The most popular additions are motorized screens for insect and wind protection, privacy walls, fans, heaters, integrated lighting, and speakers. Many homeowners also add a new deck or railing beneath the pergola.
What areas does Double T Screened Patios serve?
We serve Collin and Denton Counties, including Frisco, McKinney, Prosper, Plano, Allen, Little Elm, Denton, Celina, and surrounding communities.
Get a Free Quote on Motorized Louvered Pergola Installation in
Collin and Denton Counties
Motorized, retractable, fixed, or manual. Custom-built and engineered for North Texas conditions from the ground up.
